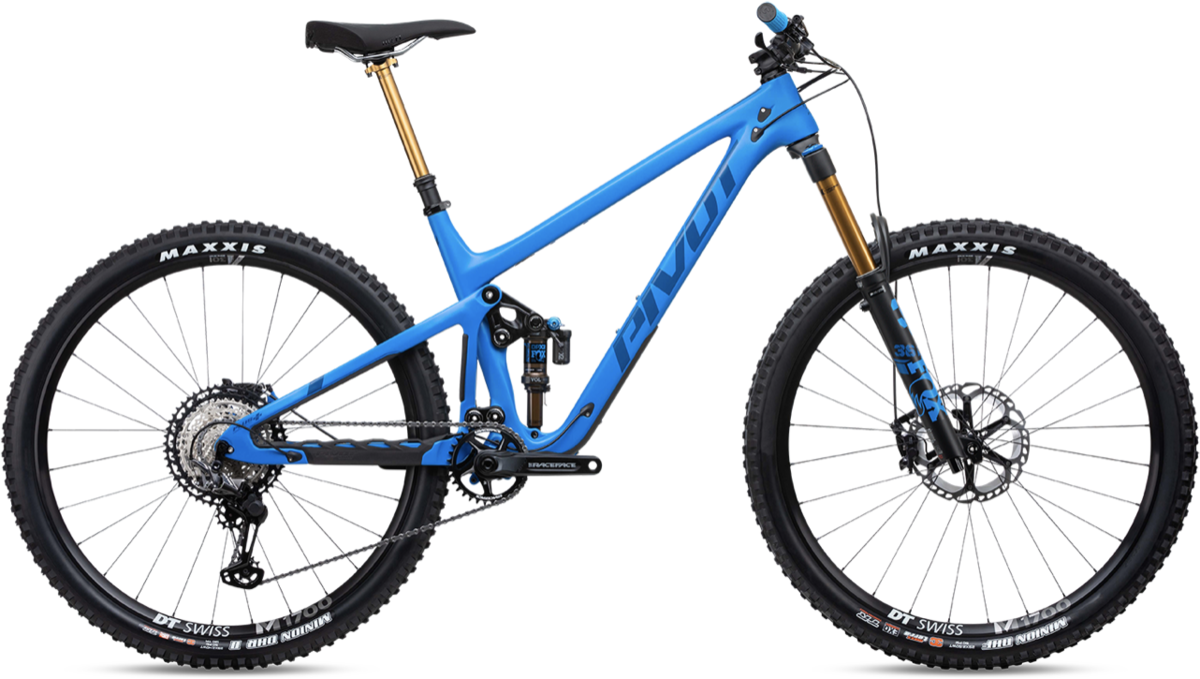

Pivot Cycles Switchblade Pro XT/XTR
Details
Specs
| Frame | Carbon fiber front and rear triangle. Alloy suspension linkage |
|---|---|
| Fork | Fox Factory 36, 44mm offset, GRIP2, 160mm travel |
| Headset | Pivot Precision Sealed Cartridge - Tapered - ZS 44/56mm |
| Rear Shock | Fox Factory Float DPX2 185x55 Trunnion |
| Axles | 12x157 rear, 15x110 front |
| Rims/Wheels | DT Swiss XM1700, 30mm internal width, 29-inch |
| Hubs | DT Swiss 350, 36-tooth start ratchet |
| Spokes | DT Swiss Competition |
| Tires | Maxxis Minion DHF 29x2.5 WT TR 3C EXO+ MAXXTERRA (Front), Maxxis Minion DHRII 29x2.4 WT TR 3C EXO+ MAXXTERRA (Rear) |
| Crankset | Race Face Effect R 32t, 175mm arms |
| Chainrings | 32-tooth |
| Bottom Bracket | Race Face BB92 |
| Chain | Shimano CN-M8100 12-speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano XTR M9100 SGS 12-speed |
| Cassette/Rear Cogs | Shimano XT M8100 10-51-tooth |
| Shifters | Shimano XT M8100 ISPEC EV 12-speed |
| Handlebars | OneUp Components Carbon Bar 20mm Rise 780mm wide |
| Tape/Grips | Pivot |
| Stem | Pivot Alloy 50mm |
| Brake Levers | Shimano XT M8120 4-Piston |
| Brakes | Shimano XT M8120 4-Piston |
| Pedals | N/A |
| Saddle | Selle Italia |
| Seat Post | Fox Transfer Factory Stealth |
* Subject to change without notice.
